OSG Carbide End Mill, 4-Blade, Small Diameter Long Neck Bull Nose, Corner Radius 0.1mm, Blade Diameter 1.5mm, Blade Length 0.6mm, 3191505, PHX-LN-CRE-1.5XR0. 1X12, 1 Piece

OSG Carbide End Mill, 4-Blade, Small Diameter Long Neck Bull Nose, Corner Radius 0.1mm, Blade Diameter 1.5mm, Blade Length 0.6mm, 3191505, PHX-LN-CRE-1.5XR0. 1X12, 1 Piece

JAN： 　
Carbide Radius End Mill Cutting Tools OSG Carbide End Mill A Turning and milling tools
¥6,613
¥6,613
Sale Sold out
Shipping calculated at checkout.

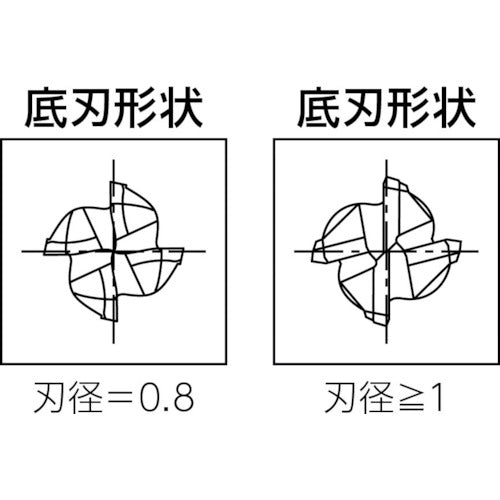

Catalog number: PHX-LN-CRE-1.5XR0. 1X12 Features: ●High-hardness rib groove machining end mill that is particularly resistant to breakage and chipping. Applications: ●Cutting materials: carbon steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel, hardened steel (up to 60HRC). Specifications: ●Blade diameter (mm): 1.5 ●Corner radius (mm): 0.1 ●Blade length (mm): 0.6 ●Total length (mm): 50 ●Shank diameter (mm): 4 ●Number of blades (pieces): 4 ●Surface treatment: WXS coating ●Number of blades: 4 ●Twist angle 30° (DC≧1), 54° (DC=0.8) Material/Finish: ●Carbide
