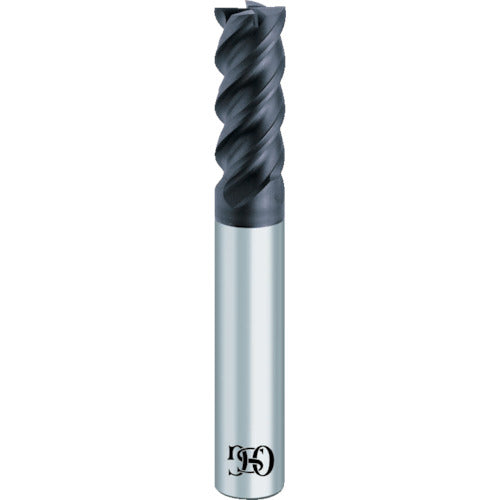

OSG Carbide End Mill FX High Helix Short 20X3F 8542300 FX-MG-EHS-20X3F 1 piece

OSG Carbide End Mill FX High Helix Short 20X3F 8542300 FX-MG-EHS-20X3F 1 piece

JAN： 　
Carbide Square End Mill Cutting Tools OSG Carbide End Mill A Turning and milling tools
¥69,960
¥69,960
Sale Sold out
Shipping calculated at checkout.
Catalog number: FX-MG-EHS-20X3F Features: ● Strong twist type with good cutting performance. Applications: ● Workpiece: Carbon steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel (up to 45HRC), hardened steel, titanium alloy, heat-resistant alloy, stainless steel (up to 35HRC), cast iron, ductile cast iron (up to 350HB). Specifications: ● Blade diameter (mm): 20 ● Blade length (mm): 38 ● Shank diameter (mm): 20 ● Number of blades (pieces): 3 ● Total length (mm): 105 ● Surface treatment: FX coating ● Number of blades: 3 ● Twist angle 50° Material/Finish: ● Carbide
