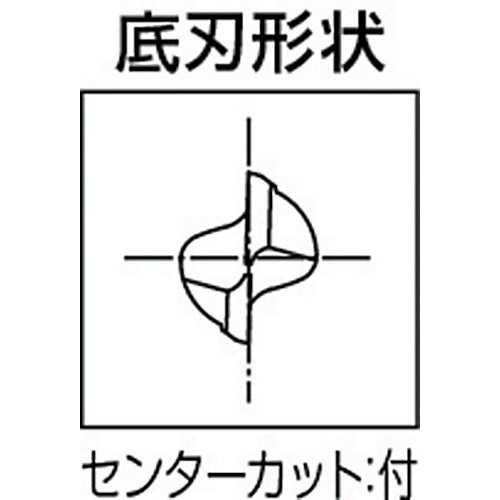

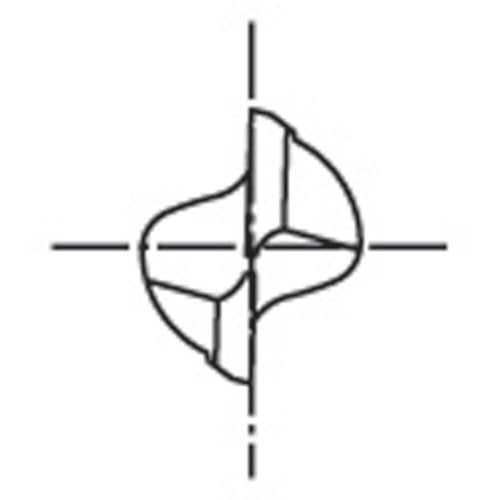

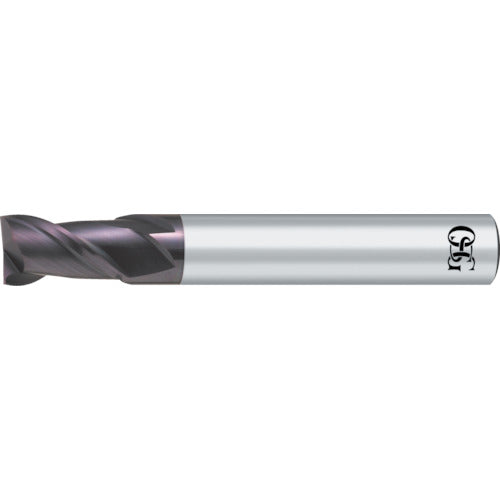

Catalog number: WX-G-EDSS-3 Features: ● Powerful 2-blade end mill with reinforced bottom blade corner. ● Heavy cutting is possible due to the short blade length with high rigidity. Achieves lead time reduction in mass production processing. Applications: ● Workpiece: Carbon steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel, hardened steel (up to 45HRC), cast iron, ductile cast iron (up to 350HB). Specifications: ● Blade diameter (mm): 3 ● Blade length (mm): 4.5 ● Shank diameter (mm): 6 ● Total length (mm): 50 ● Surface treatment: WX coating ● Twist angle 35° ● Center cut: Included Material/Finish: ● Carbide
