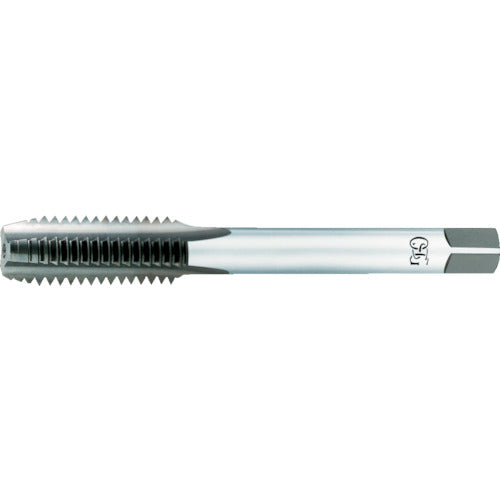

OSG Carbide Tap 24041 OTT-3P-STD-M12X1 1 piece

Catalog number: OTT-3P-STD-M12X1 Features: ●Due to the durability of the cutting edge and the separation of cutting chips, it is ideal for large-scale threading. ●Can be used for both through holes and blind holes. ●Ideal for large-scale threading of ordinary cast iron, tough cast iron, thermosetting resin, brass castings, etc. using high-precision automatic machines. Applications: ●Workpiece: Cast iron, bronze, thermosetting plastic, ductile cast iron, brass, brass castings, aluminum alloy castings, magnesium alloy castings, zinc alloy castings Specifications: ●Tip: Medium ●Accuracy: OH3 ●Accuracy notation: STD ●Nominal size: M12 ●Pitch (mm): 1 ●Thread length (mm): 24 ●Total length (mm): 80 ●Shank diameter (mm): 8.5 ●Shank square section (mm): 6.5 ●Pilot hole diameter (mm): 11 ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Tap grade: OH grade Material/Finish: ●Carbide
