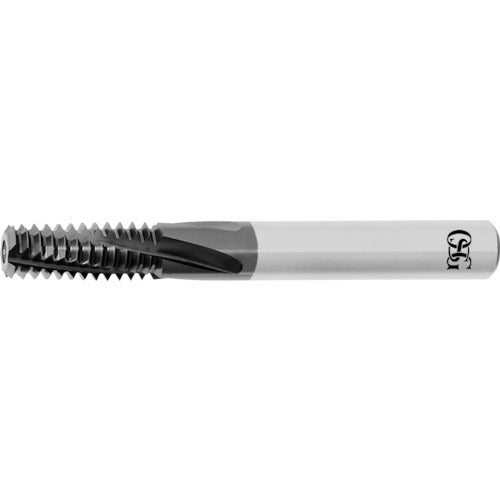

OSG Carbide Tap 3900201 WX-PNC-7.5X9.1XRC28 1 piece

Catalog number: WX-PNC-7.5X9.1XRC28 Features: ●One tool can process threads with different nominal dimensions if they have the same pitch, and can process both right-handed and left-handed threads. ●Also used in the aircraft industry. Applications: ●Cutting materials: aluminum rolled materials, aluminum alloy castings, titanium alloys, Ni-based alloys, thermosetting plastics, thermoplastic plastics, low carbon steel, cast steel, cast iron, ductile cast iron, copper, brass, brass castings, bronze, magnesium alloy castings, zinc alloy castings. Specifications: ●Nominal size: 1/8 ●Number of teeth: 28 ●Blade diameter (mm): 7.5 ●Blade length (mm): 9.1 ●Total length (mm): 60 ●Number of blades (pieces): 3 ●Shank diameter (mm): 8 ●Neck length (mm): 12.7 ●Surface treatment: WX coating ●Total length L: 60 ●Blade length l: 9.1 ●Shank diameter d: 8 Material/Finish: ●Carbide
