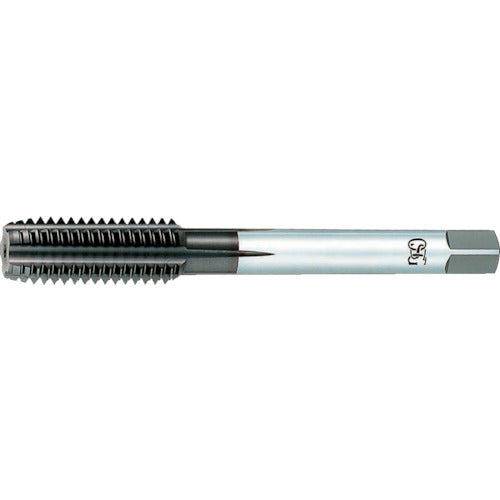

OSG Carbide Tap 8330119 VX-OT-3P-STD-M12X1.25 1 piece

Catalog number: VX-OT-3P-STD-M12X1.25 Features: ●For hardened steel. ●Can be used for both through holes and blind holes. ●Ideal for threading hardened steel (alloy steel, die steel, tool steel, etc.) with a hardness of 50HRC or more. Applications: ●Workpiece: Tempered steel (hardness 50-60HRC). Specifications: ●Tip: 3 teeth ●Accuracy: OH4 ●Accuracy notation: STD ●Nominal size: M12 ●Pitch (mm): 1.25 ●Thread length (mm): 29 ●Total length (mm): 82 ●Shank diameter (mm): 8.5 ●Shank square section (mm): 6.5 ●Pilot hole diameter (mm): 10.75 ●Machined thread: Metric thread ●Surface treatment: V coating (composite multi-layer coating) ●Tap grade: OH grade Material/Finish: ●Carbide
