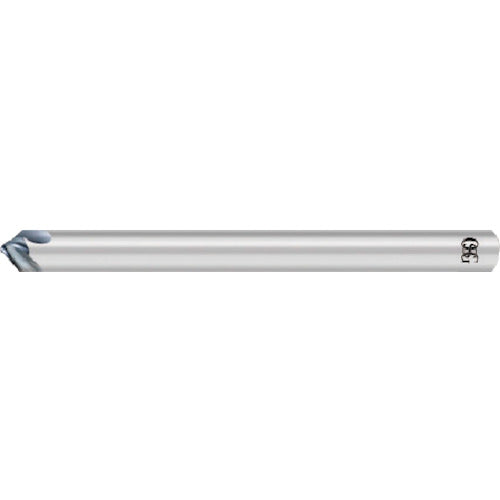

OSG Chamfering Cutter, Negative Type, Long Shank, 3 Blades, Tip Diameter 2mm, Large End Diameter 16mm, Total Length 140mm, 9200086 LS-HSCT-N 2X45X16X140 1 Piece

Catalog number: LS-HSCT-N 2X45X16X140 Features: ●Suppresses vibration during machining, and provides good chip removal and a beautiful finished surface. Applications: ●Workpiece materials: carbon steel, alloy steel, pre-hardened steel (up to 45HRC), tool steel, hardened steel (up to 45HRC), stainless steel, aluminum alloy, titanium alloy, heat-resistant alloy ●For corner chamfering. Specifications: ● Tip diameter (mm): 2 ● Large end diameter (mm): 16 ● Blade diameter (mm): 16 ● Number of blades (pieces): 3 ● Total length (mm): 140 ● Shank diameter (mm): 16 ● Number of blades: 3 ● Material: Carbide ● Tip angle (°): 45 ● Surface treatment: Non-coated ● Twist angle: 40° ● Nominal: 2X45ﾟX16 ● Outside diameter: 16 ● Total length: 140 ● Blade length: 7 ● Taper half angle: 45° ● Type: Negative type Material/Finish: ● Carbide
