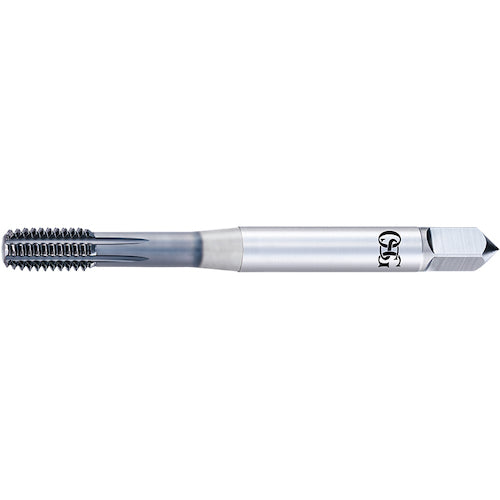

OSG High-Efficiency, Multi-Functional Rolling Tap A-XPF A-XPF STD CPM B M8X1.25 1 pc

Catalog number: A-XPF STD CPM B M8X1.25 Features: ●Compared to cutting taps, there is no chip trouble in carbon steel and alloy steel, and it is possible to perform long-life machining. ●Reduced tool change time due to chip trouble and machine downtime for removing accumulated chips, realizing energy savings. Applications: ● Low carbon steel (C to 0.25%): ◎, medium carbon steel (C 0.25% to 0.45%): ◎, high carbon steel (C 0.45% or more): ◎, alloy steel: ◎, tempered steel (25 to 35HRC): ◎, stainless steel (up to 35HRC): ◎, cast steel: ○, copper: ◎, brass: ◎, brass castings: ◎, aluminum rolled material: ◎, aluminum alloy castings: ◎, zinc alloy castings: ◎ Specifications: ● Precision: RH7 ● Precision notation: STD ● Nominal dimensions: M8X1.25 ● Pitch (mm): 1.25 ● Thread length (mm): 12 ● Total length (mm): 70 ● Shank diameter (mm): 6.2 ● Shank square section (mm): 5 ● Countersink diameter (mm): 7.34 to 7.41 ● Number of engagement threads: 2P ● Machined thread: Metric thread ● Surface treatment: VI coating ● Machined hole type: Blind hole Material/Finish: Powder Metallurgy HSS
