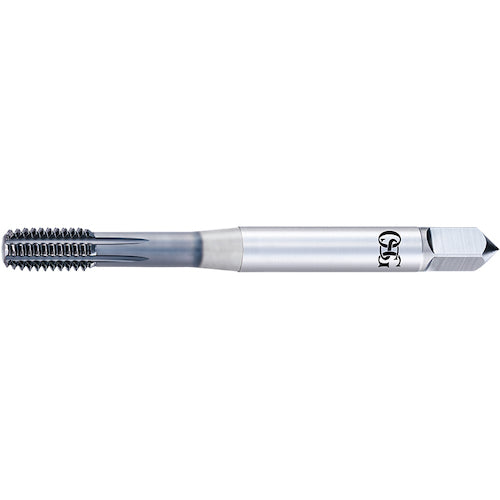

OSG High-efficiency, multi-function rolling tap A-XPF 8327850 A-XPF STD CPM B M6X1 1 piece

Catalog number: A-XPF STD CPM B M6X1 Features: ●Compared to cutting taps, there is no chip trouble in carbon steel and alloy steel, and it is possible to perform long-life machining. ●Reducing tool change time due to chip trouble and machine downtime for removing accumulated chips, it realizes energy saving. Applications: ●Low carbon steel (C~0.25%):◎, medium carbon steel (C0.25%~0.45%):◎, high carbon steel (C0.45% or more):◎, alloy steel:◎, tempered steel (25~35HRC):◎, stainless steel (up to 35HRC):◎, cast steel:○, copper:◎, brass:◎, brass castings:◎, aluminum rolled material:◎, aluminum alloy castings:◎, zinc alloy castings:◎ Specifications: ●Accuracy:RH7 ●Accuracy notation:STD ●Nominal dimensions:M6 ●Pitch (mm):1 ●Thread length (mm):10 ●Total length (mm):62 ●Shank diameter (mm):6 ●Shank square section (mm):4.5 ●Counterbore diameter (mm):5.48~5.57 ●Number of engagement threads:2 threads ●Machined thread:metric thread ●Surface treatment:VI coating ●Machined hole type:blind hole Material/Finish: ●Powdered high speed steel (Powdered high speed steel) Metallurgy HSS)
