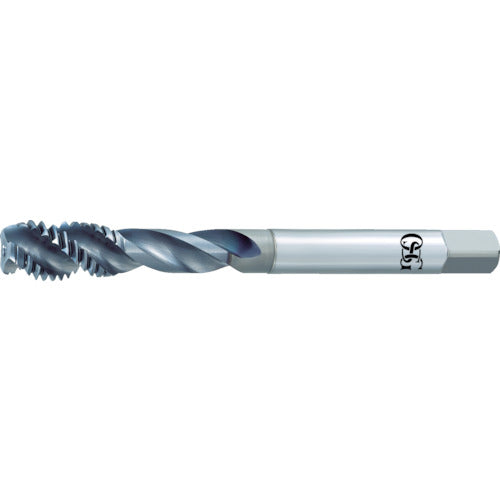

OSG A-Spiral Tap (for metric threads) M14 x 2 Shank diameter 10.5 mm 8325347 A-SFT-STD-M14X2 1 piece

Catalog number: A-SFT-STD-M14X2 Features: ●This revolutionary product has stable chip removal and can be used with a wide range of work materials and machines. Applications: ●For blind hole processing. ●Work material: low, medium, and high carbon steel, alloy steel, tempered steel (up to 35HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, and zinc alloy castings. Specifications: ●Accuracy: OH4 ●Accuracy notation: STD ●Nominal size: M14 ●Pitch (mm): 2 ●Thread length (mm): 24 ●Total length (mm): 88 ●Shank diameter (mm): 10.5 ●Shank square section (mm): 8 ●Pilot hole diameter (mm): 12 ●Number of teeth: 2.5 teeth ●Machining thread: Metric thread ●Surface treatment: V coating Material/Finish: ●Powdered high speed steel (CPM)
