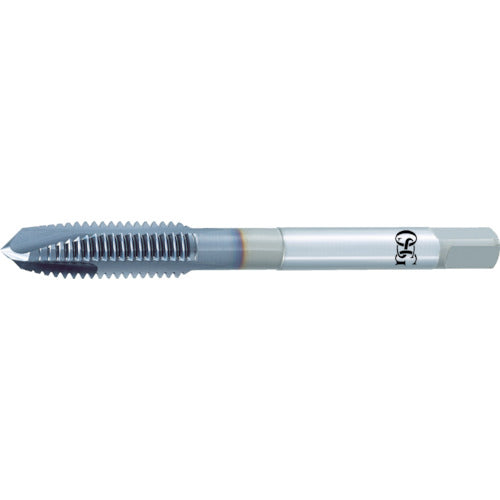

OSG A-point tap M10X1.25 8325121 A-POT-STD-M10X1.25 1 piece

Catalog number: A-POT-STD-M10X1.25 Features: ●This revolutionary product has stable chip removal and can be used with a wide range of work materials and machines. Applications: ●For through hole machining. ●Work materials: low, medium and high carbon steel, alloy steel, tempered steel (25-45HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, titanium alloys. Specifications: ● Precision: OH3 ● Precision notation: STD ● Nominal size: M10 ● Pitch (mm): 1.25 ● Thread length (mm): 24 ● Total length (mm): 75 ● Shank diameter (mm): 7 ● Shank square section (mm): 5.5 ● Counterbore diameter (mm): 8.75 ● Number of engagement threads: 5 threads ● Machined thread: Metric thread ● Surface treatment: V coating Material/Finish: ● Powdered high speed steel (CPM)
