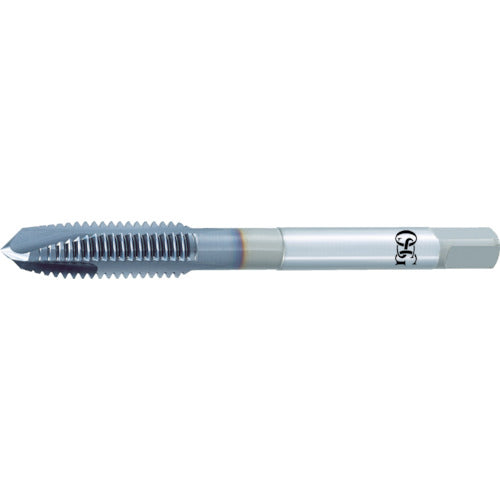

OSG A-point tap M18X1.5 8325170 A-POT-STD-M18X1.5 1 piece

Catalog number: A-POT-STD-M18X1.5 Features: ●This revolutionary product has stable chip removal and can be used with a wide range of work materials and machines. Applications: ●For through hole machining. ●Work materials: low, medium and high carbon steel, alloy steel, tempered steel (25-45HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, titanium alloys. Specifications: ● Precision: OH4 ● Precision notation: STD ● Nominal size: M18 ● Pitch (mm): 1.5 ● Thread length (mm): 37 ● Total length (mm): 100 ● Shank diameter (mm): 14 ● Shank square section (mm): 11 ● Counterbore diameter (mm): 16.5 ● Number of engagement threads: 5 threads ● Machined thread: Metric thread ● Surface treatment: V coating Material/Finish: ● Powdered high speed steel (CPM)
