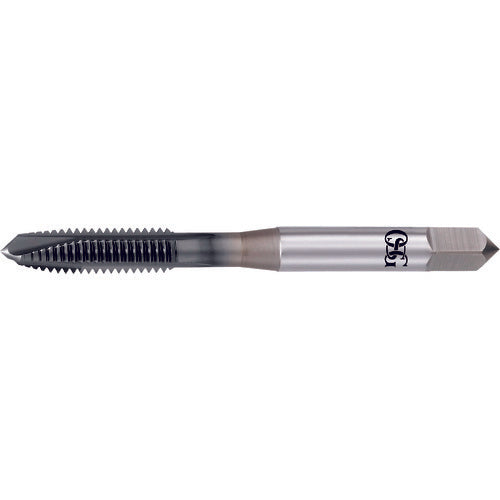

OSG A-point tap (end mill shank) A-POT 8325808 A-POT STD 5P M14X2-12 1 piece

Catalog number: A-POT STD 5P M14X2-12 Features: ● A revolutionary product with stable chip removal and compatibility with a wide range of work materials and machines. Applications: ● For low, medium and high carbon steel, alloy steel, tempered steel (25-45HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum material, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, and titanium alloys. Specifications: ● Precision: OH5 ● Precision notation: STD ● Nominal dimensions: M14×2-12 ● Pitch (mm): 2 ● Thread length (mm): 30 ● Overall length (mm): 88 ● Shank diameter (mm): 12 ● Counterbore diameter (mm): 12 ● Number of engagement threads: 5 threads ● Machined thread: M ● Surface treatment: V coating ● Number of grooves: 3 ● Neck length (mm): 48 ● Tap grade: OH grade Material/Finish: ● Powdered high speed steel (CPM)
