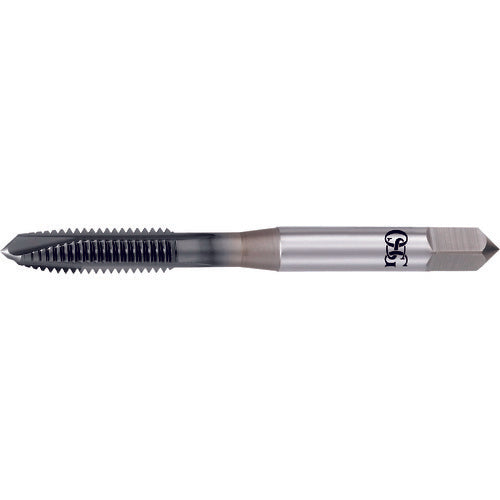

OSG A-point tap A-POT 8325488 A-POT STD+1 5P M8X1.25 1 piece

Catalog number: A-POT STD+1 5P M8X1.25 Features: ● A revolutionary product with stable chip removal and compatibility with a wide range of work materials and machines. Applications: ● For low, medium and high carbon steel, alloy steel, tempered steel (25-45HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum material, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, and titanium alloys. Specifications: ● Precision: OH4 ● Precision notation: STD+1 ● Nominal size: M8 ● Pitch (mm): 1.25 ● Thread length (mm): 22 ● Total length (mm): 70 ● Shank diameter (mm): 6.2 ● Shank square section (mm): 8 × 5 ● Counterbore diameter (mm): 6.8 ● Number of engagement threads: 5 threads ● Machined thread: M ● Surface treatment: V coating ● Number of grooves: 3 ● Protrusion center: Yes ● Neck length (mm): 37 Material / Finish: ● Powdered high speed steel (CPM)
