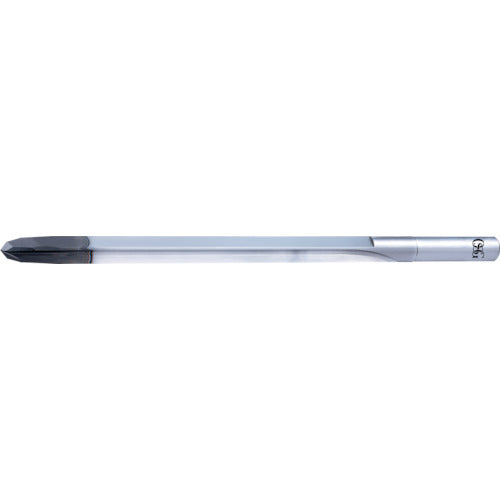

OSG Diamond Coated Carbide Triple Angle Drill for CFRP 8809082 D-STAD-.2510 1 piece

Catalog number: D-STAD-.2510 Features: ●Composed of three tip angles, it distributes cutting resistance in the radial direction, suppressing delamination on both the entrance and exit sides of the CFRP and achieving high hole quality. Applications: ●Workpiece: CFRP. ●Workpiece: Aluminum drawn material, aluminum alloy casting, titanium alloy, Inconel. ●For the aviation industry. Specifications: ●Blade diameter (mm): 6.375 ●Groove length (mm): 51 ●Total length (mm): 101 ●Shank diameter (mm): 6.375 ●Surface treatment: Diamond coating Material/Finish: ●Carbide
