OSHITARI High-performance Water Filter OMF Filter Φ300 x 500 2 pieces OMF-500AK 1 box

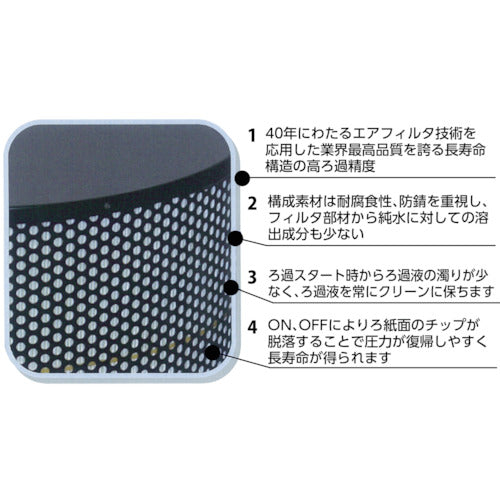

Catalog number: OMF-500AK Features: ● A long-life, high-filtration filter for EDM machines, with a filter material that easily removes attached chips and a unique filter paper folding structure. ● There is very little turbidity at the start of filtration, and performance improvements can be expected, such as surface roughness, prevention of secondary discharge, extended life of ion exchange resin, and transparency of the clean tank. Applications: ● For mold processing. Specifications: ● Filtration accuracy: Standard ● Inner filter paper: None ● Compatible models: Mitsubishi Electric DWC-(90, 90S, 90P, 110, 110S, 110P) A, B, S, Z, ZP Makino Milling Machine EE-(3, 6, 6L, 8), EQ-5, EH-(3, 6), EQH-5, EQF-5, MU-43, MUQ-32 Seibu Electric EW-(A5, A5S, A7S, C3, 300K2, 450K2, 600K2, 700K2, 1000K2), EWPB3S●Dimensions (mm): φ300×500●Joint (shape): Coupling●Joint (material): Brass●Pressure (kg/cm2): Internal pressure (0.25MPa)●Coupler (shape): Yes●Coupler (material): Brass●Outer diameter: φ300mm×height 500mm●Maximum operating pressure (MPa): 0.25MPa●Super Filter Series Material/Finish:●Top plate, outer tube: Resin, iron●Filter paper: Chemical fiber●Paint: Electrochemical coating Caution:●When the built-in pressure gauge indicates 0.25MPa, replace with a new filter.●When replacing, be sure to wear gloves after stopping the machine. The used filter will be heavy with water, sludge, etc., so please remove it carefully.
