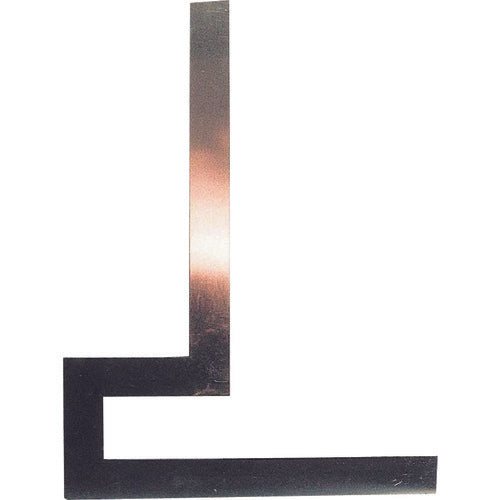

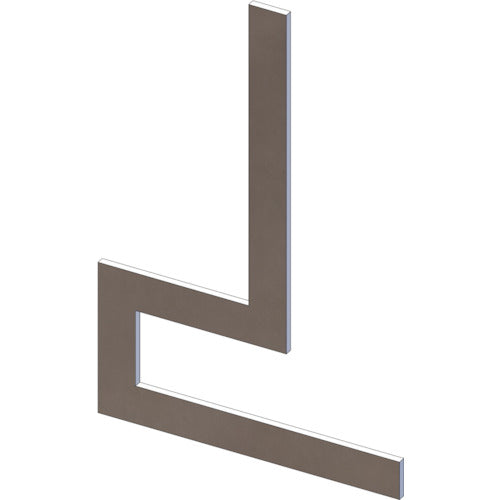

OSS Flange Square H Square 600 x 500 170-600 1 pc

Catalog number: 170-600 Features: ●Ideal for right-angle checking and alignment of various flanges (oil and water pipes, etc.). ●Industrial vacuum packaging is used, which is effective in preventing dust, rust, and deterioration. Applications: ●For right-angle checking and alignment of various flanges (oil and water pipes, etc.). Specifications: ●Width (mm): 50 ●Thickness (mm): 5 ●Total length (mm): 600 ●Total width (mm): 500 ●Length (mm): 515 ●Depth (mm): 100 ●Nominal dimensions (mm): 600 ●Shape: Flange type ●Accuracy (μm): 80 ●Accuracy JIS Class 2: Within ±(20+total length/10)μm Material/Finish: ●General structural rolled steel
