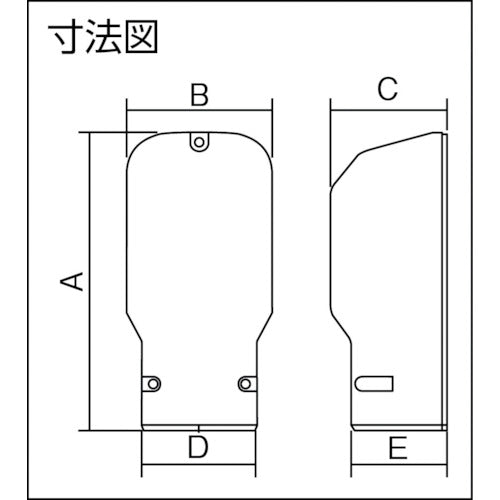

Catalogue number: DAS260S Features: ● A decorative cover used for the part where the coated copper pipe is pulled out from the wall. ● A standard type with a sleek form. Uses: ● Decorative cover for air conditioner piping. Specifications: ● Color: White ● Model: 60 model ● Depth (mm): 75.5 ● Width (mm): 94 ● Height (mm): 192 ● A (mm): 192 ● B (mm): 94 ● C (mm): 75.5 ● D (mm): 73 ● E (mm): 61 ● Recommended core drill diameter: φ65 or less (60 model), φ75 or less (80 model) Material/Finish: ● Synthetic resin
