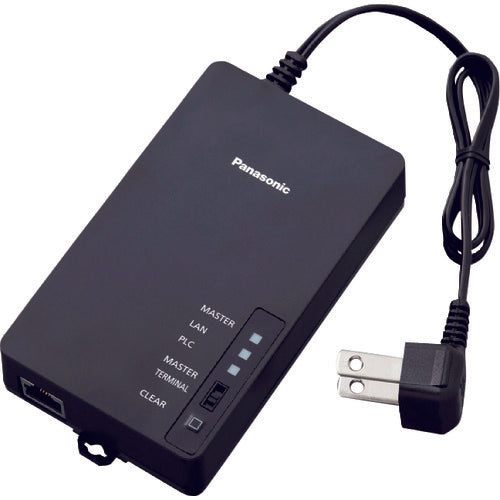

Panasonic HD-PLC compatible PLC adapter WPN7111 1 unit

Catalog number: WPN7111 Features: ● Utilizes power lines to create a network in factories, buildings, and other locations where construction of communication lines and wireless communication is difficult. ● The multi-hop function allows communication to be relayed through multiple terminals, making it possible to build a PLC network even in factories and buildings with long wiring lengths. ● Automatic routing allows communication without the need for tedious setup work. Applications: ● For creating a network in locations where construction of new communication lines and wireless communication are difficult. Specifications: ● Rated voltage (V): AC100 ● Type: Outlet type/Outdoor use (Installed inside a box) ● Width (mm): 72 ● Depth (mm): 122 ● Height (mm): 30 ● Cable length (m): 0.5 ● Color: Black ● Operating temperature range (℃): -20 to 60 ● Rated frequency: 50Hz/60Hz ● Relative humidity: 30% to 85% (no condensation) ● Power consumption: 4W or less ● Operating frequency: 2MHz to 28MHz ● Communication speed: 240Mbps ● Access method: CSMA/CA ● Security: AES128bit encryption ● Conformity standards: HD-PLC method ITU-T G.9905 Multi-hop function ● Maximum number of hops: 10 Number of terminals: Maximum 1024 units/1 master unit Communication distance: Approximately 200m between this product Supported protocols: TCP, UDP Material/Finish: ● PC/ABS resin, POM resin, soft PVC
