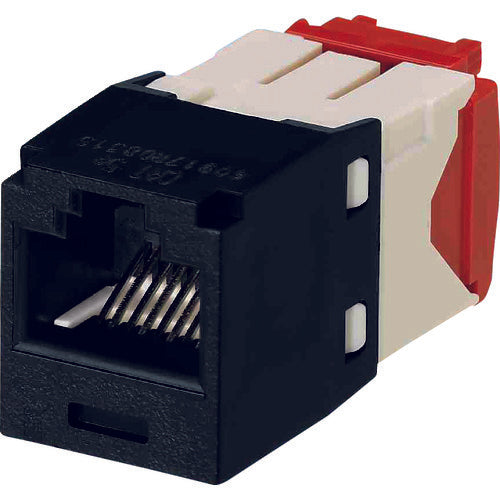

PANDUIT Category 5E RJ45 Modular Jack UTP TG Type Black CJ5E88TGBL CJ5E88TGBL 1 pc

Catalog number: CJ5E88TGBL Features: ●Designed to meet ANSI/TIA-568-C.2 Category 5E standards. ●100% tested to ensure NEXT performance. ●Termination caps provide superior strain relief, control cable bend radius, and hold wires securely. ●Bulk crimping makes installation easy. Applications: ●For Category 5e LAN wiring. Specifications: ●Color: Black ●Category: Category 5e ●Type: CAT5E/UTP ●Number of ports: 1 ●Compatible jacks: 1 ●Compatible cables: AWG22-26 solid or stranded wires ●Length (mm): 38.15 ●Width (mm): 15.87 ●Height (mm): 18.06 ●Operating temperature range (℃): -10 to 65 ●Insulation outer diameter: Max. Φ1.52mm ●Outer coating diameter: Φ5.08mm to Φ8.38mm ●Auxiliary tools: EGJT-1 ●For indoor use
