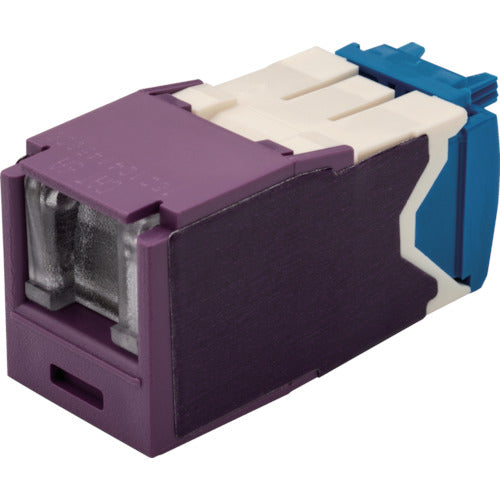

PANDUIT Category 6A Shuttered Modular Jack Purple CJH6X88TGVL 1 pc

Catalog number: CJH6X88TGVL Features: *When the plug is connected, the shutter is pushed inward, eliminating the need to open and close the shutter by hand. *Equipped with a shutter to prevent dust and other particles from entering when not in use. *Bulk pressure welding makes installation quick and easy. *Structure minimizes untwisting of the cable. Applications: *Category 6A communications connector. Specifications: Color: Purple Category: Category 6A Type: Category 6A Number of ports: 1 Compatible jacks: 1 Compatible cables: AWG22-26 solid or twisted wire Length (mm): 38.15 Width (mm): 16.06 Height (mm): 18.06 Operating temperature range (℃): -10 to 65 Insulation outer diameter: Maximum Φ1.52mm Outer coating diameter: Φ5.08 to 8.38mm For indoor use Operating temperature range: -10 to 65℃ Auxiliary tools: EGJT-1 Material/Finish: ABS resin, polycarbonate, phosphor bronze, glass epoxy multi-layer type
