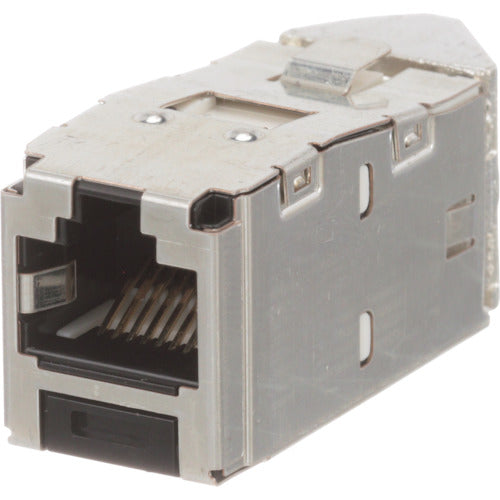

PANDUIT Category 6A 45 degree left and right angle shielded modular jack black CJSLR6X88TGY CJSLR6X88TGY 1 piece

Catalog number: CJSLR6X88TGY Features: ● Shielded modular jack that allows cable insertion at 45 degrees left or right. ● Cable can be inserted at 45 degrees left or right, making it suitable for use in places with limited space or when pulling out the cable at an angle. ● Jack connection is possible in a narrow space while maintaining the appropriate bend radius and ensuring performance, and keeping the cable appearance neat. Applications: ● For jack connection with angled shield. Specifications: Color: Black Category: Cat6A Type: 45 degree shield angle with cap on the left and right Number of ports: 1 Compatible cables: AWG22-26 shielded solid or twisted wire Length (mm): 43.9 Width (mm): 15.9 Depth (mm): 44.1 Height (mm): 18.8 Type: Shielded Operating temperature range (℃): -10 to 65 Insulation outer diameter: Maximum φ1.52mm Outer coating diameter: φ5.08mm to 8.38mm For indoor use Auxiliary tools: TGSJT
