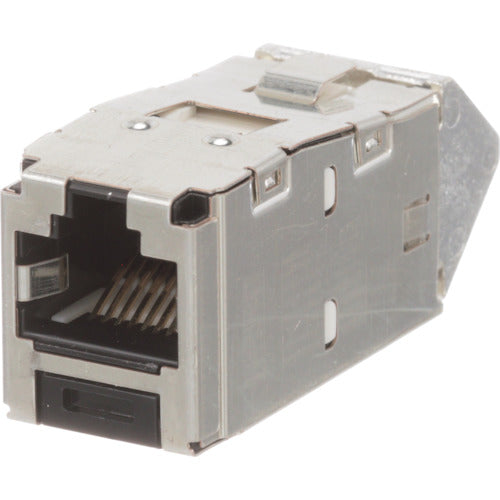

PANDUIT Category 6 45 degree up/down angle shielded modular jack black CJSUD688TGY CJSUD688TGY 1 piece

Catalog number: CJSUD688TGY Features: ● A shielded modular jack that allows cable insertion at 45 degrees up or down. ● Cables can be inserted at 45 degrees up or down, making it suitable for use in places with limited space or when pulling out cables at an angle. ● Allows jack connections in tight spaces while maintaining the proper bend radius and performance, and keeping the cable appearance neat. Applications: ● For jack connections with angled shields. Specifications: Color: Black Category: Cat6 Type: 45 degree shielded angle with caps Number of ports: 1 Compatible cables: AWG22-26 shielded solid or twisted wire Length (mm): 44.1 Width (mm): 15.9 Depth (mm): 44.1 Height (mm): 18.8 Type: Shielded Operating temperature range (℃): -10 to 65 Insulation outer diameter: Maximum φ1.52mm Outer coating diameter: φ5.08mm to 8.38mm For indoor use Auxiliary tools: TGSJT
