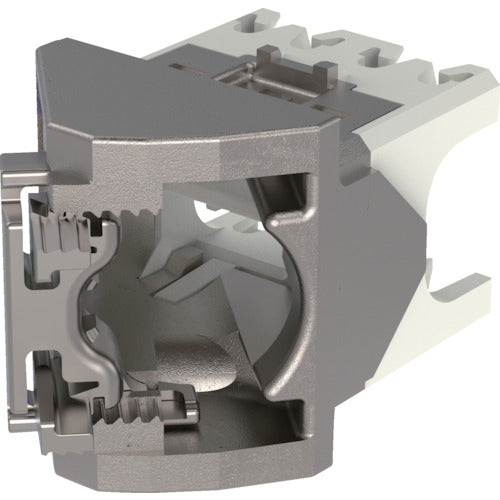

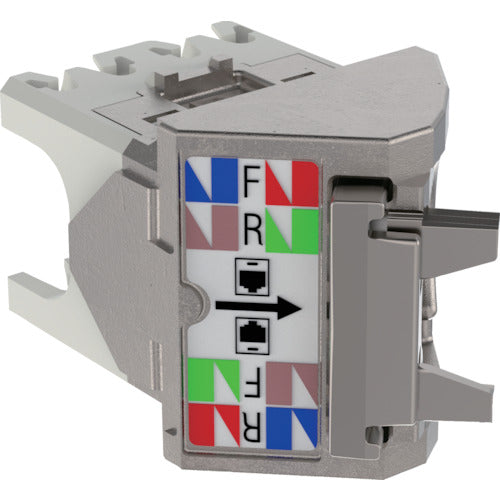

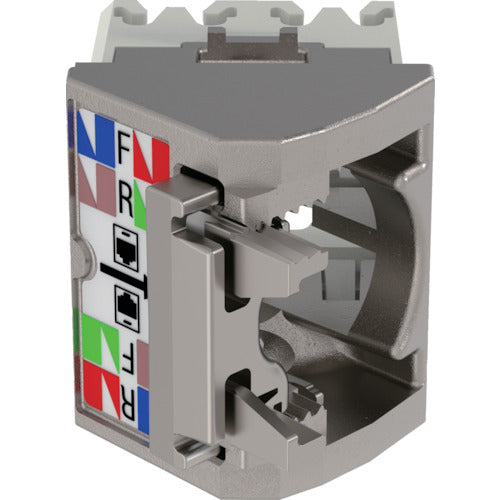

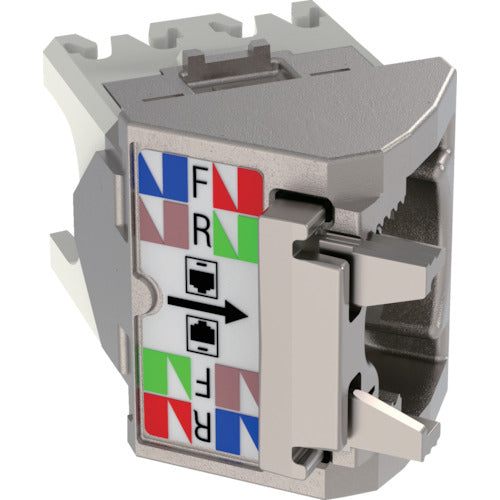

PANDUIT Category 6 45 Degree Shielded Angle Shielded Modular Jack Cap Off-White CJSLRCAPIW-X CJSLRCAPIW-X 1 Bag

Catalog number: CJSLRCAPIW-X Features: ● Cap for shielded modular jacks that allow cable insertion from 45 degrees left and right. ● When combined with a shielded modular jack, the cable can be inserted from 45 degrees left and right. ● Suitable for use when pulling out the cable at an angle or in places with limited space. ● Allows jack connection in a narrow space while maintaining the appropriate bending radius and ensuring performance, and tidying the appearance of the cable. Uses: ● As a 45-degree left and right cap for shielded modular jacks. Specifications: ● Color: Off-white ● Category: Cat6 ● Type: 45-degree left and right shield angle cap ● Number of ports: 1 ● Compatible jacks: CAT6 shielded modular jacks ● Compatible cables: AWG22-26 shielded solid or twisted wires ● Length (mm): 24.4 ● Type: Shielded ● Operating temperature range (℃): -10 to 65 ● Insulator outer diameter (mm): Maximum φ1.52 ● Outer coating diameter (mm): φ5.08mm to 8.38 ● For indoor use
