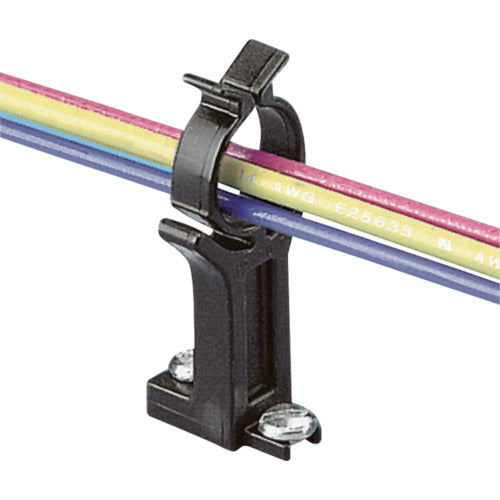

PANDUIT Harness Board Accessories Bundle Retainer (100 pieces) BR.75-E6-C 1 bag

Catalogue number: BR.75-E6-C Features: ●Funnel-shaped socket allows quick cable insertion. ●The ends are bent and butted together to prevent the cable from coming loose. ●Easy removal after the harness is completed. Applications: ●Holding cables during harness assembly. Specifications: ●Color: Black ●Length (mm): 11.2 ●Width (mm): 19.8 ●Height (mm): 24.1 ●Screw dimensions used: M3 ●Maximum binding diameter (mm): 19.1 ●Fixing method: M3 screw ●A (mm): 24.1 ●Dimensions (mm) B: 11.2 ●C (mm): 19.8 ●D (mm): 19.3 ●Compatible screw: QB-S6-500-C ●Compatible fixing platform: QB-BASE175-Q ●B (mm): 11.2 ●For indoor use ●Operating temperature range: -40 to 85°C Material/Finish: ●Nylon 66
