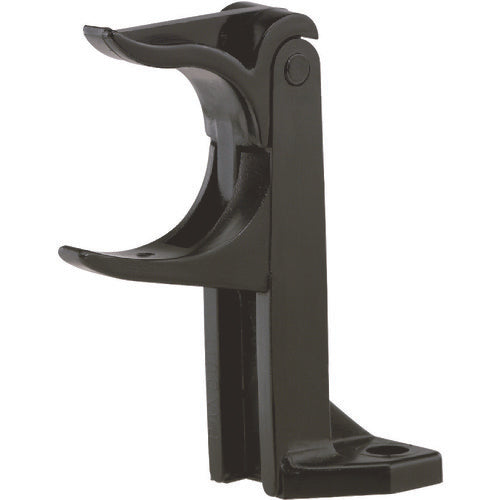

PANDUIT Harness Board Accessories Corner Post (10 pieces) CPH.75-S8-X 1 bag

Catalog number: CPH.75-S8-X Features: ● Holds bundled wires at corners and branching points. ● The upper claws spring up, allowing the harness to be easily removed. Applications: ● Holds cables at corners and branching points during harness assembly. Specifications: ●Color: Black ●Length (mm): 22.9 ●Width (mm): 40.6 ●Height (mm): 45.2 ●Screw hole diameter (mm): 4.4 ●Screw dimensions used: M4 ●Width (mm): 22.9 ●Depth (mm): 40.6 ●Maximum binding diameter (mm): 19.1 ●Fixing method: M4 screw ●A (mm): 45.2 ●Dimensions (mm) B: 40.6 ●C (mm): 34.3 ●D (mm): 22.9 ●E (mm): 30.0 ●B (mm): 40.6 ●For indoor use ●Operating temperature range: -40 to 85°C Material/Finish: ●Nylon 66 Note: ●This product cannot be canceled.
