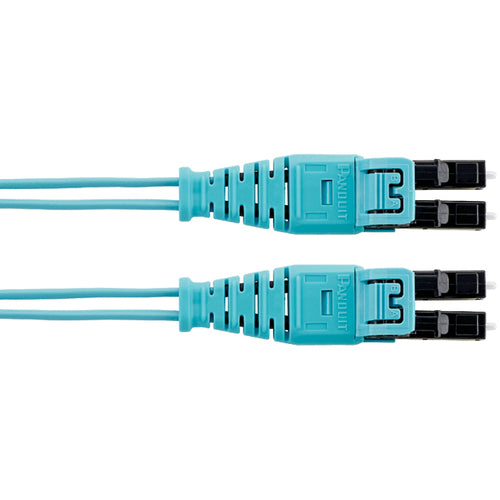

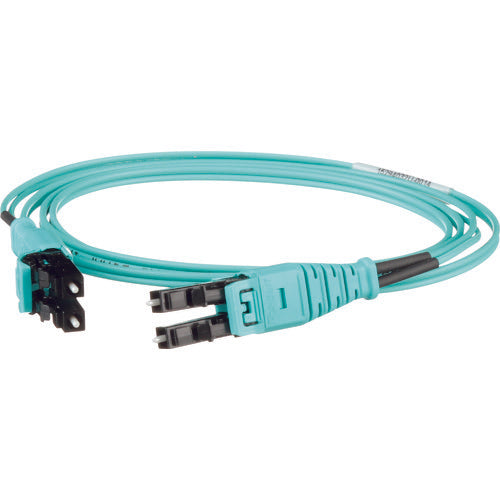

PANDUIT Push-pull LC duplex fiber optic patch cord riser OM4 1m 1 piece FZ2ERQ1Q1SNM001 1 piece

Catalog number: FZ2ERQ1Q1SNM001 Features: ●Polarity can be changed by removing the clip. ●Simple design with integrated boot. ●In the field of high density LC patch, it can be easily inserted and removed by simply pinching the boot part. (The cable is designed so that it will not come out just by pulling it) Specifications: ● Type: OM4 ● Number of cores: 2 ● Cable type (mm): 1.6 ● Cable color: Aqua ● Length (m): 1 ● Outer diameter (mm): 1.6 ● Color: Aqua ● Cable diameter (mm): 1.6 ● Fiber type: OM4 ● Insertion/removal durability: 500 times ● Cable bending radius: Min. 32 mm (Long-term: Min. 16 mm) ● Height (mm): 9.02 ● Return loss (dB): > 26 dB ● Length (mm): 51.27 ● Width (mm): 12.95 ● Boot color: Aqua ● LC duplex on both ends ● Connector insertion loss: Max. 0.25 dB ● Return loss: > 26 dB ● Flame retardant grade: Riser (OFNR) ● Minimum bending radius: 32 mm ● Operating temperature range: -20 to 70 °C Material/Finish: Ferrule: Zirconia; Boot: Synthetic resin; Housing: Synthetic resin; Duplex clip: Synthetic resin; Dust cap: Synthetic resin
