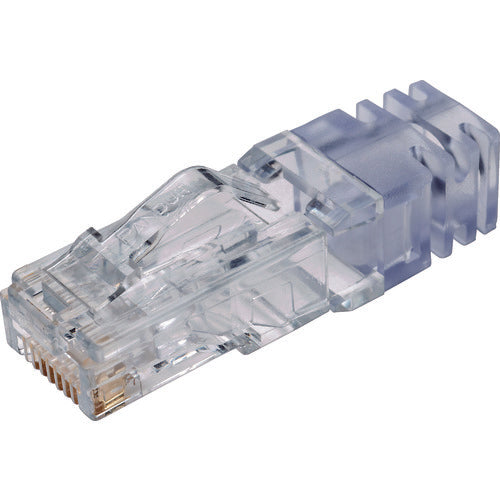

PANDUIT Modular Plug LAN Connector Category 6A 100 Pieces SP6X88-C SP6X88-C 1 Bag

Catalog number: SP6X88-C Features: ●Arch-shaped claws prevent plug removal and lever breakage. ●The contacts are arranged in a zigzag pattern to significantly reduce the effects of crosstalk. ●Comes with a slim boot. Applications: ●Category 6A communication connector. Specifications: Type: Category 6A; Compatible cable: AWG23/24 solid wire; Color: transparent; Plug type: RJ45; Operating temperature range (℃): -10 to 60; Compatible only with Panduit Category 6A UTP cable (PU□6A04□□); Conductor outer diameter: AWG23 and AWG24 solid wire; Insulator outer diameter: Φ1.02mm to Φ1.22mm; Jacket diameter: Φ6.60mm to Φ8.00mm; Operating temperature range: -10 to 60℃; For indoor use; Crimping tool: MPT5-8AS, MPT5E; Termination auxiliary tool: CSPT Material/Finish: Thermoplastic; Polycarbonate; Phosphor bronze; Soft PVC; Synthetic resin
