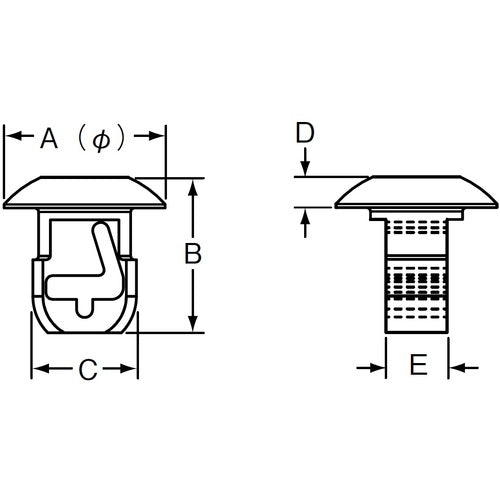

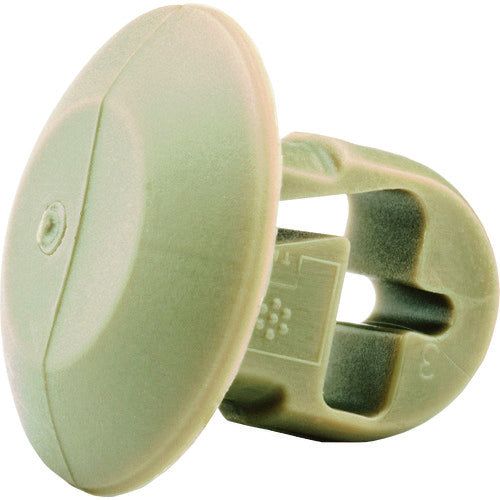

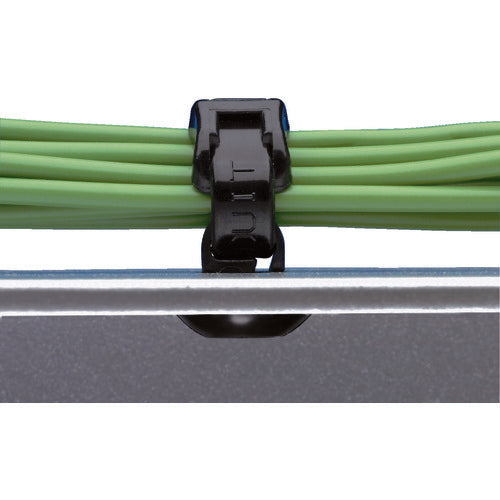

Catalog number: PBMS-H25-M14 Features: ● Suitable for use in places where it is problematic for the legs of the fixture to protrude outside the mounting panel. Applications: ● Fixing cable ties. Specifications: ● Color: Telephone gray ● Length (mm): 10.7 ● Width (mm): 10.7 ● Height (mm): 10.2 ● Cable tie width (mm): 2.3 to 4.8 ● Hole diameter (mm): φ6.4 ● Fixing method: Push-in ● Dimensions (mm) B: 10.2 ● A (mm): φ10.7 ● C (mm): 6.7 ● D (mm): 2.0 ● E (mm): 4.1 ● Operating temperature range: -60 to 85°C ● Mounting panel thickness: Maximum 3.2 mm ● For indoor use Material/Finish: ● Nylon 66
