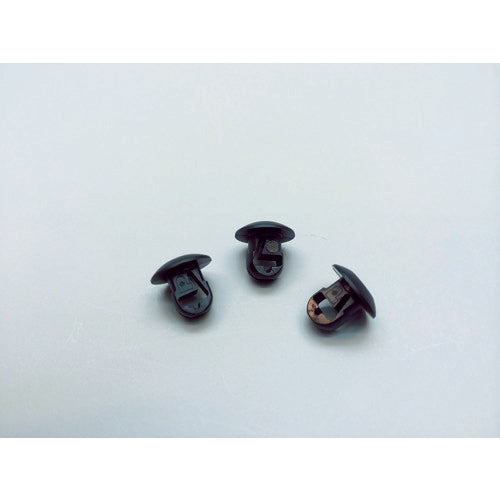

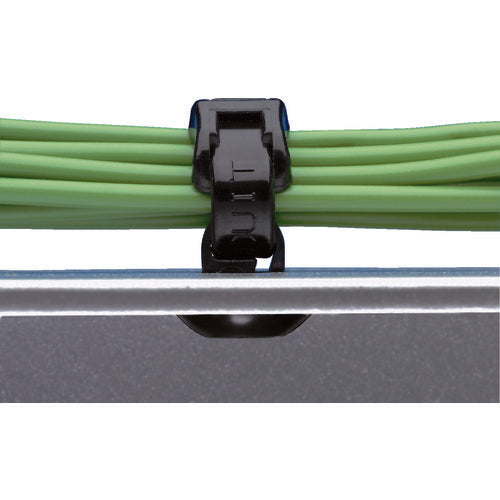

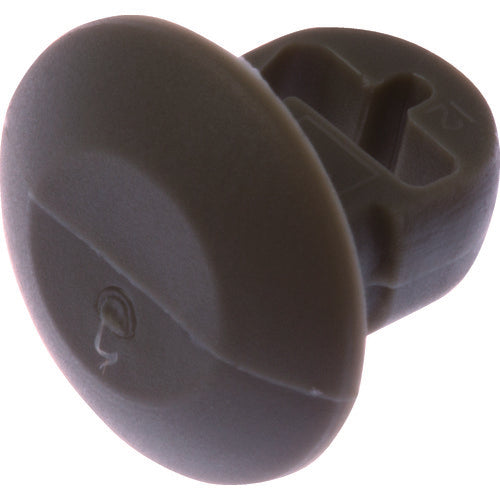

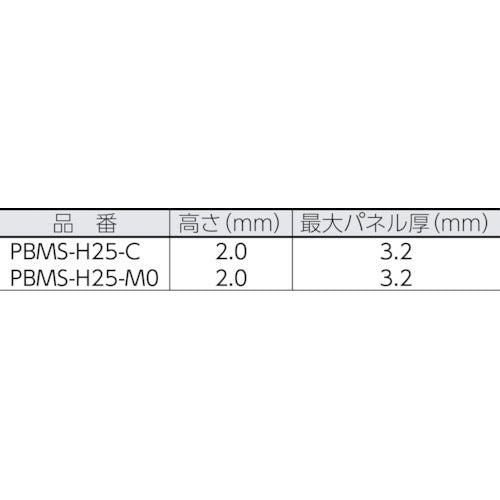

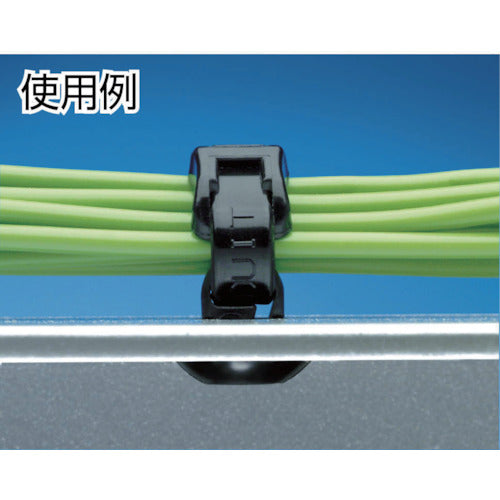

Catalog number: PBMS-H25-M0 Features: ● Suitable for use in places where it is problematic for the legs of the fixture to protrude from the surface of the mounting panel. Applications: ● Fixing cable ties. Specifications: ● Color: Black ● Length (mm): * ● Width (mm): * ● Height (mm): 10.2 ● Cable tie width (mm): 2.3 to 4.8 ● Screw hole diameter (mm): None ● Screw dimensions used: None ● Width (mm): 10.7 ● Depth (mm): 10.2 ● Maximum cable tie diameter (mm): None ● Hole diameter (mm): φ6.4 ● Fixing method: Push-in ● Operating temperature range: -60 to 85°C ● Mounting panel thickness (mm): Maximum 3.2 ● For indoor and outdoor use Material/Finish: ● Weather-resistant nylon 66
