PANDUIT Copper Compression Terminal Standard Barrel 2 Holes (50 Pieces) LCD4-14A-L 1 Bag

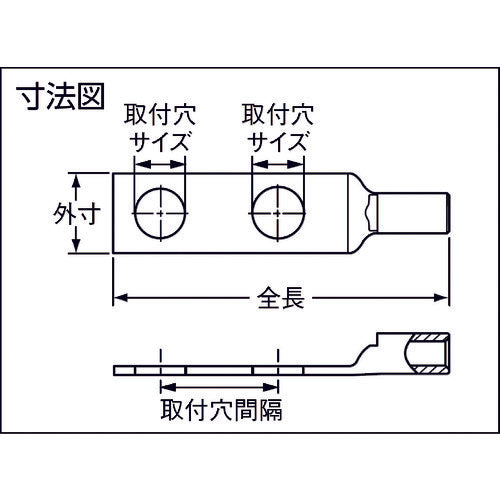

Catalog number: LCD4-14A-L Features: ● Two-hole compression terminal for copper wire. ● The die number is displayed on the barrel so that the applicable wire size and the tool to be used can be identified. ● The wire checking hole on the barrel allows you to check if the wire is fully inserted. ● Tin plated to prevent rust. Applications: ● For connecting electric wires. Specifications: ● Wire clamping range solid wire (mm): 6.5 ● Wire clamping range stranded wire (［［MM2］］): 5.2 to 5.8 ● Wire clamping range AWG: 4 to 3 (stranded wire), 2 (solid wire) ● External dimensions (mm): 14.0 ● Stud diameter (mm): 6.9 ● Total length (mm): 57.4 ● JIS standard product: × ● Mounting hole size (mm): 6.9 ● Mounting hole spacing (mm): 16.0 ● Number of pieces per bag: 50 ● External dimensions (mm): 14.0 ● UL, CSA, RoHS compliant Material/Finish: ● Copper
