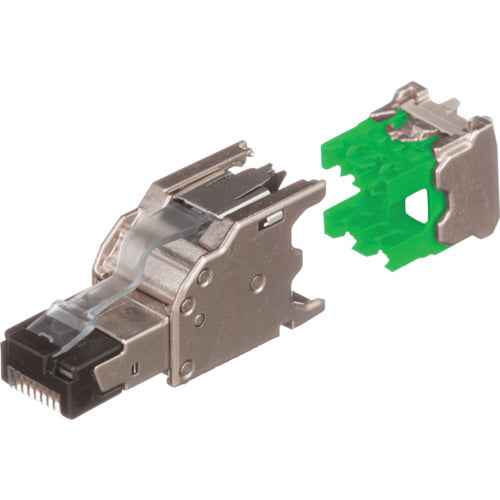

PANDUIT PROFINET Category 5E Easy Termination Shielded Modular Plug Applicable Wire: 22AWG Solid Wire/Twisted Shielded Cable 1 Piece FPE6X88MTG FPE6X88MTG 1 Piece

Catalog number: FPE6X88MTG Features: ● Facilitates field installation of 2-pair STP cable. ● PROFINET easy-termination shielded modular plug with Category 5e performance is compatible with PROFINET shielded cable 2-pair 22AWG shielded twisted pair solid or stranded cable. ● Two-part construction makes it easy to handle even in the field, and allows for "shortened termination time" and "reduced termination errors". ● Ideal for connecting network powered devices to shielded networks using MPTL links and for field termination of plugs to shielded cables. ● Re-termination can be performed up to 20 times without additional parts, saving costs on re-termination. Applications: ● For building wireless access points (WAPs), access control points, PROFINET-enabled panel or on-machine applications, and network-connected audio/video equipment. Specifications: Color: Silver Category: Cat5e Type: Shielded Number of ports: 1 Compatible cable: 22AWG solid or twisted wire Length (mm): 44.1 Operating temperature range (℃): -40 to 85 Compatible category: Category 5E Applicable conductor: 22AWG solid or twisted shielded cable Insulation outer diameter: 1.0mm to 1.6mm Outer coating diameter: Φ5.8mm to Φ9.0mm Auxiliary tool: EGPT or EGJT-1 Plug type: RJ45
