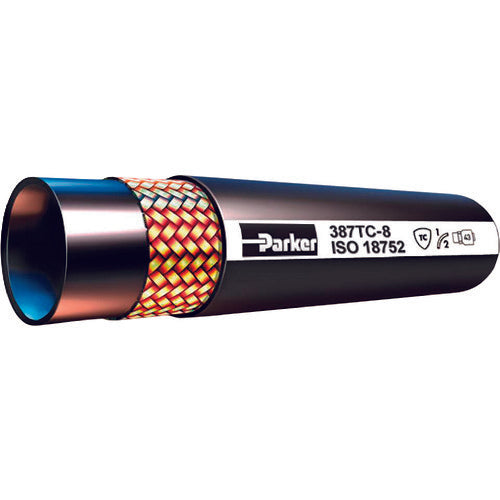

Parker Global Core Hose 3000psi 387TC-4 10CM

Catalog number: 387TC-4 Features: ●As this is a cut hose, please note that it will be shipped at a later date. ●As this is a processed product, returns are not accepted. ●All sizes of 3000 psi (21 MPa) are available for normal pressure. Applications: ●For machine tools and other hydraulic equipment in general. ●For pressures of 7, 14, and 21 MPa. Specifications: ●Outer diameter (mm): 13.4 ●Inner diameter (mm): 6.3 ●Operating pressure (MPa): 21.0 ●Allowable bending radius (mm or more): 50 ●Inner diameter of hose (inch): 1/4 ●Dash designation: 4 ●Total length of original roll (m): 130 ●Operating temperature range (℃): -40 to +125 ●Hose: ISO18752 standard (pressure standard) and SAE standard (structural standard) Material/Finish: ●Synthetic rubber Note: ●As this is a cut hose, returns are not accepted. ●Please check the size before ordering.
