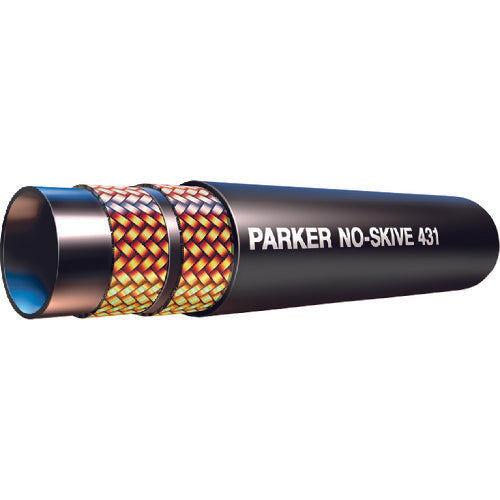

Parker Hydraulic Hose 431-4 10 CM

Catalog number: 431-4 Features: ●Please note that this is a cut hose and will be shipped at a later date. ●Please refrain from returning this product as it is a processed product. ●This hose has a pressure range of 2000 to 5000 psi (13.8 to 34.5 MPa). ●Designed, constructed, and tested to meet SAE J1942 specifications. Applications: ●For machine tools and other hydraulic equipment in general. ●For pressures of 35 MPa. Specifications: ●Outer diameter (mm): 13.0 ●Inner diameter (mm): 6.3 ●Operating pressure (MPa): 35.0 ●Allowable bending radius (mm or more): 50 ●Inner diameter of hose (inch): 1/4 ●Dash designation: 4 ●Operating temperature range (℃): -40 to +125 ●Total length of original roll (m): 130 ●Hose: ISO18752 standard (pressure standard) and SAE standard (structural standard) Material/Finish: ●Synthetic rubber Note: ●This is a cut hose and cannot be returned. Please check the size before placing your order.
