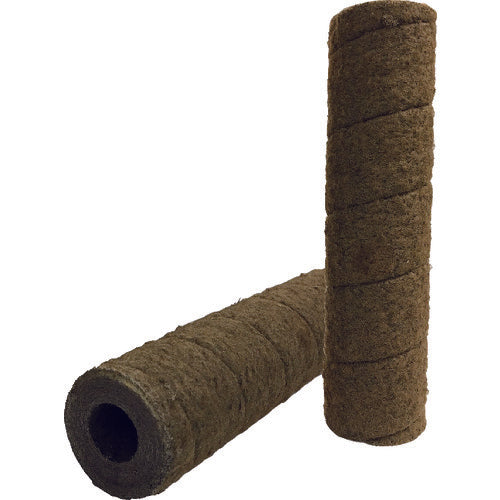

Parker Resin Molded Filter Cartridge PRO Series PRO75-29 1 pc

Catalog number: PRO75-29 Features: ●The outer spiral structure captures large solid particles and agglomerated particles, while the inner layer controls the filtration efficiency to the specified level. ●The outer spiral structure increases the surface area, properly capturing residues and contaminants from machining, and achieving a long life. ●The long acrylic fibers provide the same strength as short acrylic fibers and prevent fiber fall-off. ●Phenolic resin impregnation increases the strength of the cartridge and is suitable for use with high viscosity fluids. ●Resin molding and high temperature resistance allow for use with a wide range of fluids. ●Very suitable for fluids such as paints, oils, and inks. ●Coreless structure allows incineration. (No need for disassembly and disposal) ●Can be installed in most housings used in Japan. (Please contact us for compatibility.) Applications: ●Ideal for paints, printing inks, adhesives, resins, emulsions, organic solvents, chemical coatings, wax, oils, gas fluids, and petrochemical products. Specifications: Filtration accuracy (μm): 75; Outer diameter (mm): 65; Length (mm): 736.6; Inner diameter (mm): 28.5; Length (inch): 29; Maximum operating temperature: 121°C; Recommended replacement differential pressure: 0.15 to 0.35 MPa; Inner diameter x outer diameter: 28.5 x 65 mm; Material/Finish: Cellulose fiber, phenolic fiber, acrylic fiber
