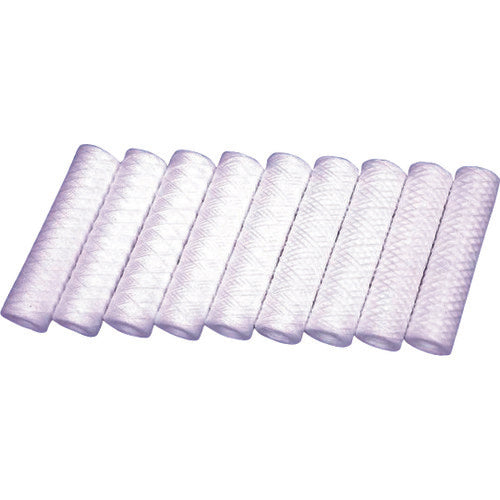

Parker Thread Wound Filter Cartridge CW Series CW500-05 1 pc

Catalog number: CW500-05 Features: ● A thread-wound filter cartridge with cotton filter material. ● Because the filter material is made of cotton, it has excellent resistance to high temperatures and chemicals. Applications: ● Filtration of rolling oil, lubricating oil, and work oil. ● Filtration of boiler condensate. ● Filtration of minerals, industrial oil, organic agents, etc. Specifications: ● Filtration accuracy (μm): 5 ● Outer diameter (mm): 60 ● Length (mm): 500 ● Inner diameter (mm): 30 ● Length (inch): 9.84 ● Maximum operating temperature (℃): 120 ● Recommended replacement differential pressure (MPa): 0.14 to 0.21 ● Maximum operating temperature: 120℃ ● Recommended replacement differential pressure: 0.14 to 0.21MPa ● Inner diameter x outer diameter: 30 x 60mm Material/Finish: ● Filter material: Cotton ● Core: Stainless steel (SUS304)
