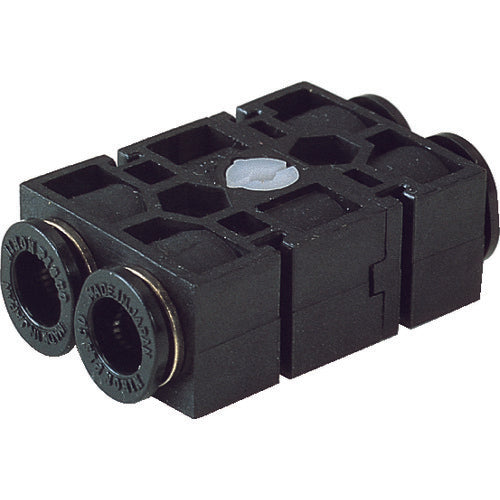

PISCO Connector Set Straight Mini Male 4X Female 4MM QC4-4M 1 piece

Catalog number: QC4-4M Features: ●Multiple tubes can be attached and detached at once, making piping work such as moving equipment easier. ●Multiple connectors can be combined vertically and horizontally. Specifications: ●Compatible tube outer diameter (mm): 4 x 4 x 4 x 4 ●Fluid temperature (℃): 0 to 60 (no freezing) ●Total length (mm): 36.7 ●Operating pressure: 0.9MPa ●Operating fluid: Air ●Compatible tube outer diameter D (mm): 4 x 4 x 4 x 4 ●Operating temperature range: 0 to 60℃ (no freezing) ●Operating vacuum pressure: -100kPa Materials/Finish: ●Body: Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
