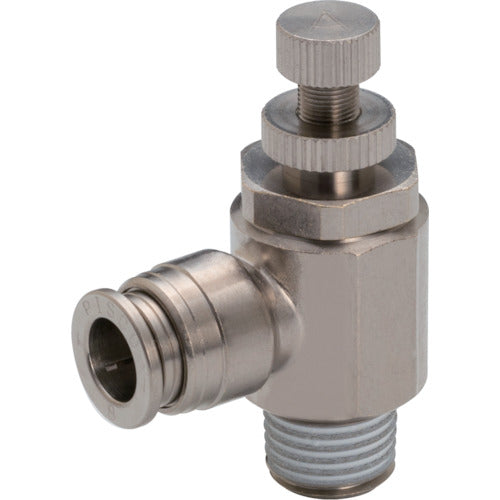

PISCO Speed Controller Brass Elbow Meter Out Control Tube 8 Thread R1/4 KJSC8-02A-1 1 pc
PISCO Speed Controller Brass Elbow Meter Out Control Tube 8 Thread R1/4 KJSC8-02A-1 1 pc
Regular price
¥1,626
Regular price
Sale price
¥1,626
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: KJSC8-02A-1 Features: ●Speed control valve for drive equipment. ●After installation, the metal body and plastic body rotate, so the tube outlet angle can be changed. ●Meter-out control (symbol: A) controls the air that enters from the screw side, and the air that enters from the fitting side is released from the screw side without being controlled. Specifications: ●Connection port size: R1/4 ●Applicable tube outer diameter D (mm): 8 ●Usable fluid: Air ●Usable temperature range: 0 to 60°C (no freezing) ●Usable pressure: 0.1 to 0.9 MPa ●Meter-out type ●Check valve operating pressure: 0.05 MPa Materials/Finish: ●Metal parts: Brass + electroless nickel plating ●Plastic parts: Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR) ●Diaphragm: HNBR
