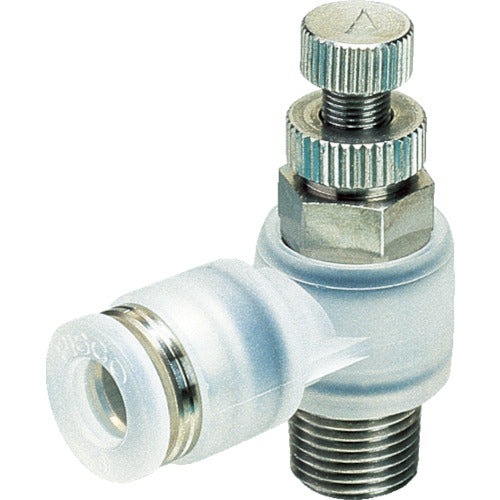

PISCO Speed ​​Controller Elbow PP Type for φ6 Connection Size R1/4 PJSC6-02A 1 pc

Catalog number: PJSC6-02A Features: ●The resin body is made of PP, which is suitable for clean environments. ●The metal material is SUS304. Specifications: ●Connection diameter: R1/4 ●Connection diameter cylinder side: R1/4 ●Applicable tube outer diameter D (mm): 6 ●Operating pressure (MPa): 0.1 to 1.0 (at 0 to 20°C) ●Operating fluid: Air ●Shape: Elbow ●Operating temperature range: 0 to 80°C (no freezing) ●Operating pressure: 0.1 to 1.0 MPa (at 0 to 20°C) ●Check valve operating pressure: 0.05 MPa ●Meter-out type Material/Finish: ●Metal parts: Stainless steel (SUS304) ●Resin parts: Polypropylene (PP) ●Seal rubber: Ethylene propylene rubber (EPDM)
