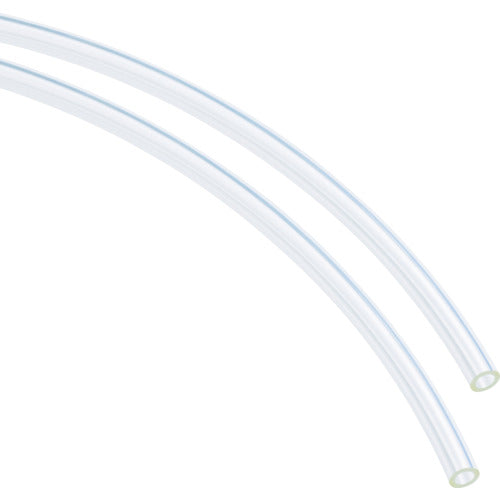

PISCO Soft Polyurethane Tube Clear 10 x 6.5mm 100M UC1065-100-C 1 Roll

Catalog number: UC1065-100-C Features: ●Ideal for compact piping. ●Can also be used for water. Specifications: ●Color: Clear ●Outer diameter (mm): 10 ●Inner diameter (mm): 6.5 ●Minimum bending radius (mm): 18 ●Usable fluid: Air, water (conditions apply) ●Total length (m): 100 ●Maximum operating pressure: 0.6MPa (at 20℃ 65%RH) ●Usable vacuum pressure: -100kPa ●Usable temperature range: -15 to 60℃ (no freezing) Material/Finish: ●TPU (thermoplastic polyurethane) Caution: ●If it is necessary to ensure the JIS standard pull-out strength, please use the genuine insert ring. (JIS B8381-1) ●When the fluid used is water, be sure to observe the following conditions. 1. Ordinary tap water can be used. Please contact us if you wish to use other water. 2. When using water, keep the surge pressure below the maximum operating pressure. 3. When connecting to a one-touch fitting and using with water, be sure to use an insert ring, as this may cause the tube to come loose.
