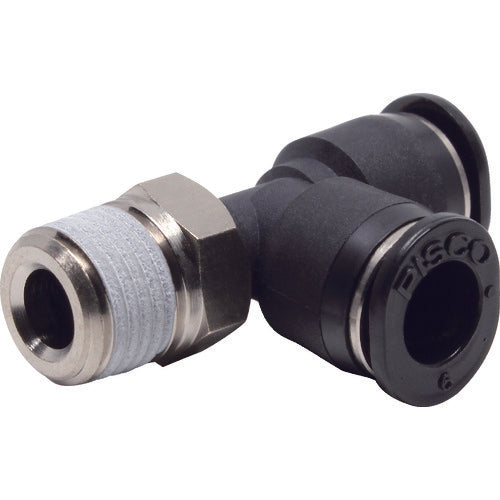

PISCO Tube Fitting Mini Branch Tee Tube 6 Connection Size R1/8 Sealock PD6-01M 1 pc

Catalog number: PD6-01M Features: ●This one-touch fitting has been successfully downsized by 40% in volume compared to the standard type. ●The release ring is oval shaped, making it easy to attach and remove the tube despite its ultra-compact size. Specifications: ●Applicable tube outer diameter D (mm): 6 x 6 ●Connection port size: R1/8 ●Hexagonal face size (mm): 10 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 0 to 60 (no freezing) ●Operating fluid: Air ●Operating temperature range: 0 to 60℃ (no freezing) ●Maximum operating pressure: 1.0MPa ●Operating vacuum pressure: -100kPa Materials/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
