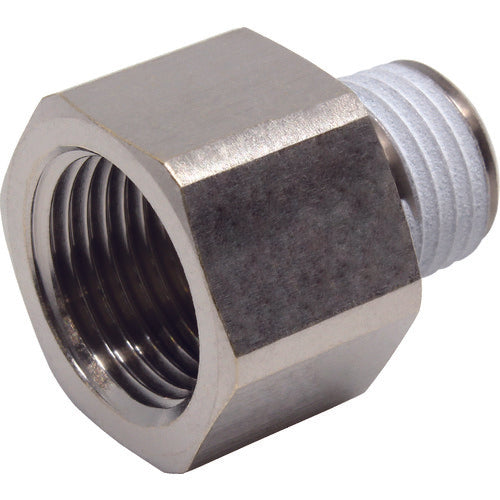

PISCO Tube Fitting Extension Joint Bush Male Thread R1/4 Female Thread Rc3/8 PF02-03 1 pc

Catalogue number: PF02-03 Features: ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be used depending on the conditions. ●A wide range of models are available to accommodate all pneumatic piping. Specifications: ●Connection diameter: R1/4 x Rc3/8 ●Hexagonal face size (mm): 21 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 0 to 60 (no freezing) ●Operating fluid: air, water (conditions apply) ●Connection diameter D2: Rc3/8 ●Connection diameter D1: R1/4 ●Operating temperature range: 0 to 60℃ (no freezing) ●Maximum operating pressure: 1MPa ●Operating vacuum pressure: -100kPa Materials/Finish: ●Metal parts: Brass + electroless nickel plating
