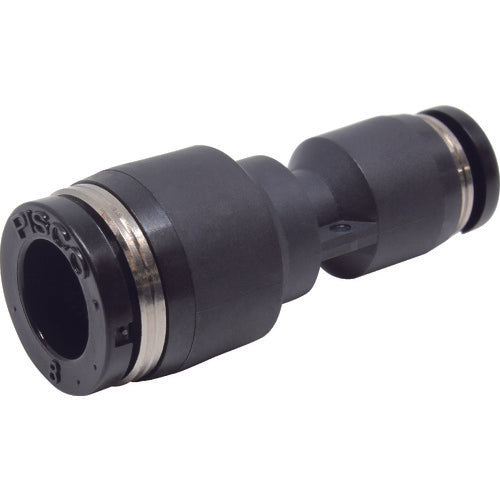

PISCO Tube Fitting Different Diameter Union Straight 8 x 4 PG8-4 1 pc

Catalogue number: PG8-4 Features: ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be passed through depending on the conditions. ●A wide range of models are available to accommodate all types of pneumatic piping. Specifications: ●Compatible tube outer diameter D1 (mm): 8 ●Compatible tube outer diameter D2 (mm): 4 ●Usable fluid: air, water (conditions apply) ●Usable temperature range: 0 to 60°C (no freezing) ●Maximum operating pressure: 1MPa ●Usable vacuum pressure: -100kPa Material/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
