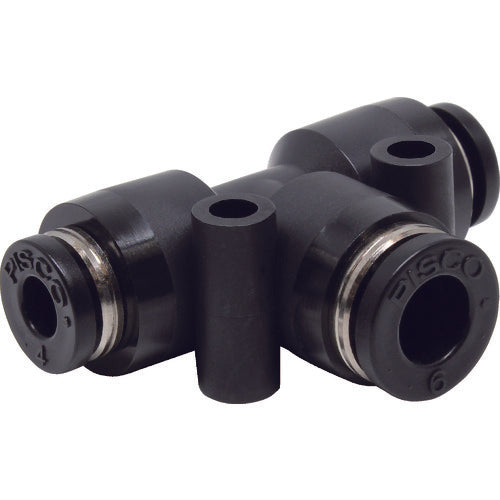

PISCO Tube Fitting Different Diameter Union Tee 4 x 4 x 6 PEG4-6 1 pc

Catalog number: PEG4-6 Features: ●A wide range of models are available to accommodate all types of pneumatic piping. ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be used depending on conditions. Specifications: ●Maximum operating pressure (MPa): 1.0 ●Compatible tube outer diameter D1 (mm): 4 x 4 ●Compatible tube outer diameter D2 (mm): 6 ●Usable fluid: air, water (conditions apply) ●Usable temperature range: 0 to 60°C (no freezing) ●Maximum operating pressure: 1MPa ●Usable vacuum pressure: -100kPa Materials/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
