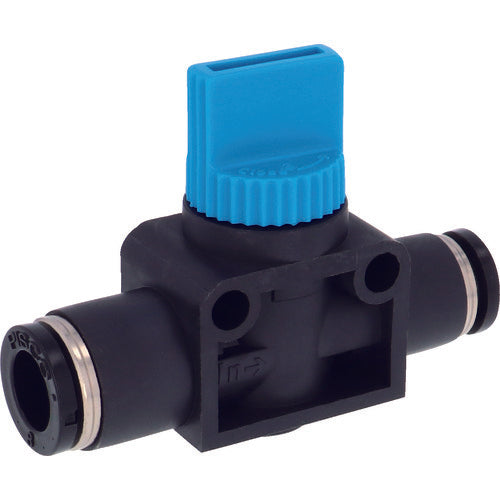

PISCO Hand Valve Union Straight 3-Way Valve Tube 8 Output 6 HV8-6 1 pc

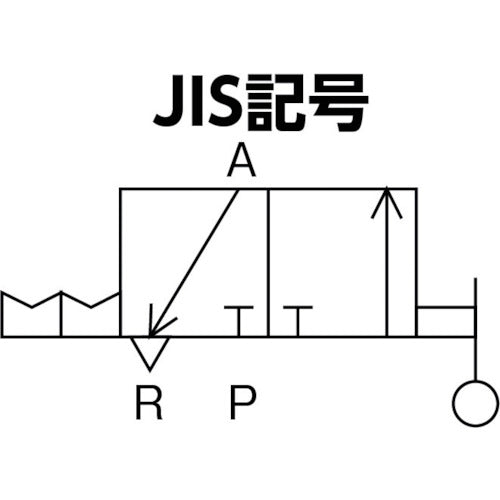

Catalog number: HV8-6 Features: ● Opens and closes the air pressure input to the equipment. ● When the 3-way valve is closed, it exhausts the residual pressure on the output side (equipment), so that adjustment and repair of the equipment can be performed safely. Specifications: ● Applicable tube outer diameter D1 (mm): 8 ● Applicable tube outer diameter D2 (mm): 6 ● Operating pressure (MPa): -0.1 to 1.0 ● Operating temperature range (℃): 0 to 60 (no freezing) ● Operating vacuum pressure (kPa): -100 ● Operating fluid: Air ● Operating temperature range: 0 to 60℃ (no freezing) ● Operating pressure: 1.0MPa ● Operating vacuum pressure: -100kPa ● 3-way valve type Material/Finish: ● Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ● Sealing rubber: Nitrile rubber (NBR)
