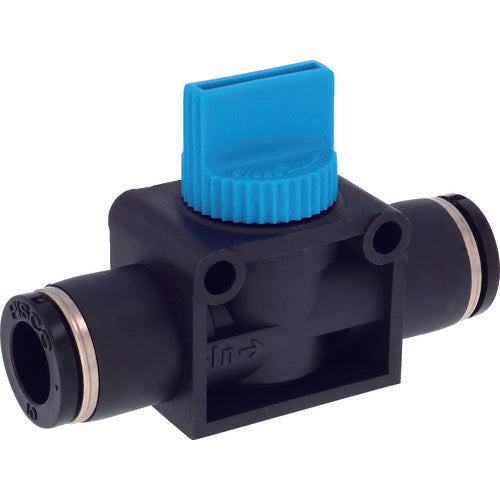

PISCO Hand Valve Union Straight 2-way Valve Type HV10-10-2 1 pc

PISCO Hand Valve Union Straight 2-way Valve Type HV10-10-2 1 pc

JAN： 　
Air valve Ball valve PISCO Pneumatic Equipment K1 Pneumatic and hydraulic equipment Pneumatic Equipment
¥1,118
¥1,118
Sale Sold out
Shipping calculated at checkout.
Catalog number: HV10-10-2 Features: ● Opens and closes the air pressure input to the equipment. Specifications: ● Compatible tube outer diameter D1 (mm): 10 ● Compatible tube outer diameter D2 (mm): 10 ● Operating pressure (MPa): -0.1 to 1.0 ● Operating temperature range (℃): 0 to 60 (no freezing) ● Operating vacuum pressure (kPa): -100 ● Operating fluid: Air ● Operating temperature range: 0 to 60℃ (no freezing) ● Operating pressure: 1.0MPa ● Operating vacuum pressure: -100kPa Material/Finish: ● Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ● Sealing rubber: Nitrile rubber (NBR)
