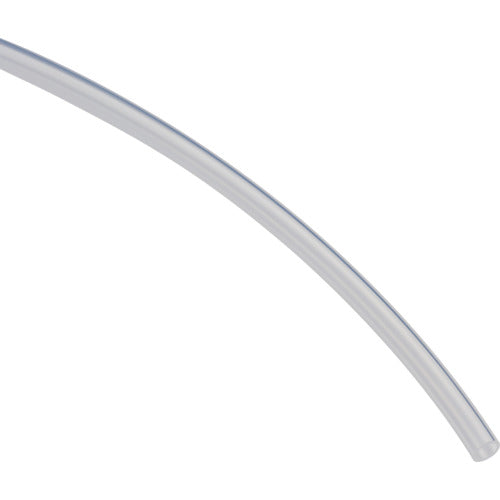

PISCO Fluorine Resin (FEP) Tube Clear 4 x 2 5m SET0420-5-C 1 pc

Catalog number: SET0420-5-C Features: ●Excellent chemical resistance, ideal for chemical, food, medical, semiconductor, and other fields. Specifications: ●Color: Clear ●Inner diameter (mm): 2 ●Outer diameter (mm): 4 ●Total length (m): 5 ●Minimum bending radius (mm): 7 ●Operating pressure (MPa): 2.7 ●Tube outer diameter (φD) (mm): φ4 ●Tube inner diameter (φD) (mm): φ2 ●Minimum mounting radius (mm): 10 ●Please contact us if you are using it for chemicals. ●Operating fluid: Air, water (conditions apply), chemicals, etc. (conditions apply) ●Operating vacuum pressure: -100kPa ●Maximum operating pressure: 2.7MPa (at 20℃ 65%RH) ●Operating temperature range: -65 to 200℃ (no freezing) Material/Finish: ●Fluoropolymer (FEP) Caution: ●Do not apply loads such as tension, twisting, or extreme bending to the tube. This may cause the tube to collapse, burst, or come loose. ●The burst pressure of the tube decreases with rising temperature, so be sure to understand the operating pressure and ensure that you have a sufficient safety margin. ●Use the tube with a minimum bending radius or greater. ●When attaching the tube to a one-touch fitting, check that the cut area of ​​the tube is cut at a right angle, that there are no scratches on the outer diameter of the tube, and that the tube is not oval.
