PISCO Fluorine Resin (FEP) Tube SET0640-5-C 1 Roll

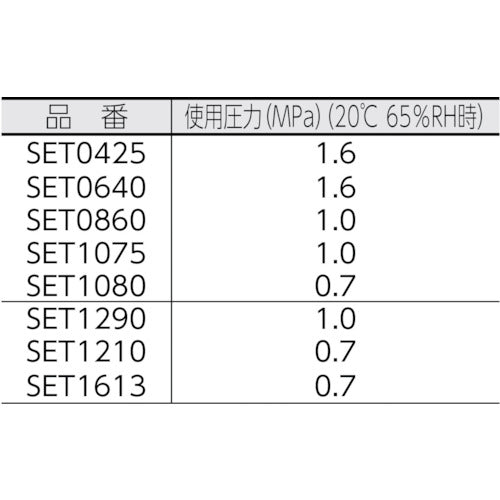

Catalog number: SET0640-5-C Features: ●Color-coded pipes to prevent piping errors and to identify multiple pipes. ●Excellent chemical resistance, ideal for chemical, food, medical, and semiconductor fields. ●Wide range of operating temperatures. Applications: ●Semiconductor manufacturing equipment. ●Food manufacturing equipment. ●Medical and chemical fields. Specifications: ●Color: Clear ●Inner diameter (mm): 4 ●Outer diameter (mm): 6 ●Total length (m): 5 ●Minimum bending radius (mm): 14 ●Operating pressure (MPa): 1.6 ●Compatible fluids: Air, water (conditions apply), chemicals (conditions apply), etc. ●Minimum mounting radius (mm): 30 ●Operating vacuum pressure: -100kPa ●Operating temperature range: -65 to 200°C (no freezing) ●Operating pressure: 1.6MPa (at 20°C 65% RH) Material/Finish: ●FEP (fluororesin)
