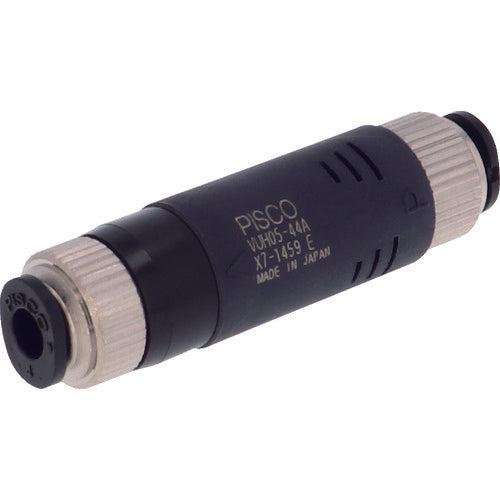

PISCO Vacuum Generator VU Union Straight VUH05-44A 1 pc

Catalog number: VUH05-44A Features: ● Generates a vacuum from compressed air. ● Small and lightweight. Specifications: ● Compatible tube outer diameter D (mm): 4 x 4 ● Nozzle diameter (mm): 0.5 ● Fluid used: Air ● Fluid temperature (℃): 0 to 60 (no freezing) ● Operating pressure (MPa): 0.15 to 0.7 ● Filtration area (cm2): 12.5 ● Type: High vacuum type ● Operating temperature range: 0 to 60℃ (no freezing) ● Operating pressure: 0.15 to 0.7MPa ● Rated supply pressure: 0.5MPa Materials/Finish: ● Metal parts: Brass + electroless nickel plating ● Plastic parts: Polybutylene terephthalate (PBT) ● Element: Polyvinyl formal (PVF)
