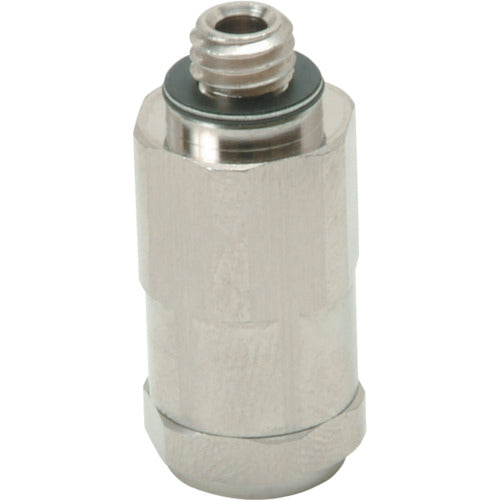

PISCO Drop Prevention Valve ECVM5-FM5 1 pc

Catalog number: ECVM5-FM5 Features: ●Even if the workpiece comes off, the drop in the source pressure of the separate circuit can be kept to a minimum. ●Even if some of the multiple pads are not adsorbed, the pads that are properly adsorbed reduce the vacuum drop, preventing the workpiece that is properly adsorbed from falling. Specifications: ● Connection diameter: M5 x 0.8 ● Length (mm): 11 ● Connection diameter 2: M5 x 0.8 ● Width (mm): 11 ● Height (mm): 20 ● Fluid used: Air ● Connection diameter 1: M5 x 0.8 ● Minimum operating suction flow rate (L/min (ANR)): 5 ● Vacuum source side screw size (M): M5 x 0.8 ● Work side female screw size (M): M5 x 0.8 ● Fluid used: Air ● Operating temperature range: 0 to 60°C (no freezing) ● Operating pressure range (positive pressure): 0 to 0.7 MPa ● Operating pressure range (negative pressure): -100 to 0 kPa Material/Finish: ● Metal parts: Brass + electroless nickel plating
